Aluminum Panel - Vertical Seam

Vertical Seam

Panel Overview

  •  Finish: PVDF
  • Material: 3003-H14 or 3105-H24 Aluminum per ASTM B 209
  • Thicknesses: 0.032" Standard
  • 12" or 16" panel coverage Standard, 18" Panel coverage Optional
  • 1 3/4" rib height
  • Concealed clip (0.050" thick) designed to accommodate thermal movement
  • Architectural/structural integral standing seam panel
  • Applies over open framing or solid substrate
  • Factory-applied side lap sealant
  •  Snap-together panel system
    *Minimum roof slope is 1:12 for solid substrates
    and 3:12 for open framing.

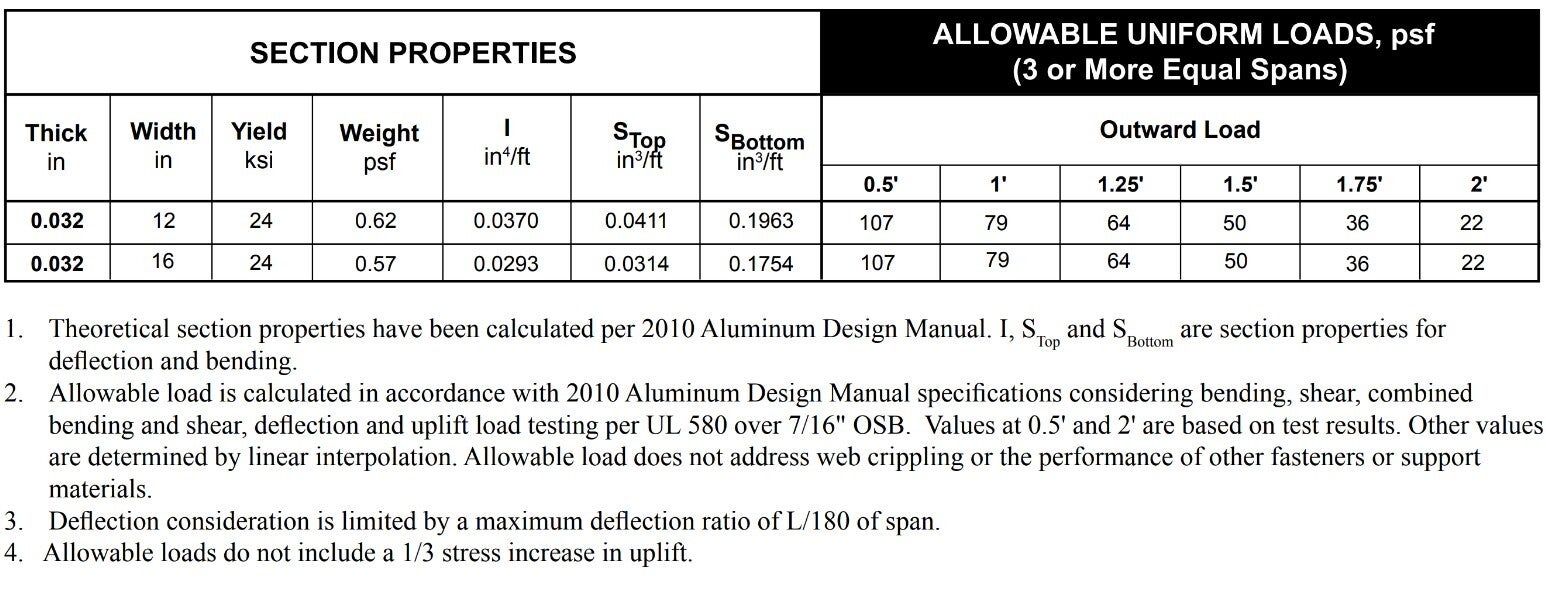

Testing and Approvals

  • UL 2218 Class 4, Impact Resistance
  • UL 790, Class A, Fire Resistance
  • UL 263, Fire Resistance
  • TAS 100 - Wind Driven Rain
  • UL 580, Class 90 Wind Uplift, Construction Numbers 508, 508A
  • ASTM E 1592 Roof Uplift Load
  • 2020 FBC Approvals: FL14645.5 and 14645.6
  • ICC Evaluation Report, ESR-2385

Aluminum Panels - Aluminum Image II

Corrugated aluminum panels are the original metal roofing and siding panels and are a traditional staple in agricultural applications. Today, usage has expanded beyond its rural roofing heritage, and they are being increasingly used to add traditional, and rustic looks to homes, restaurants, retail establishments, and many other building types.

Panel Overview

  • Finishes: PVDF and Mill Finish
  • Material: 3105-H24 Aluminum per ASTM B 209
  • Thickness: 0.032"
  • 12" or 16" panel coverage, 1" rib height
  • Architectural concealed direct fasten integral standing rib roof panel
  • Applies over solid substrate with 30 pound felt underlayment
  • Minimum roof slope: 3:12

Testing and Approvals

  • UL 2218, Class 4, Impact Resistance
  • UL 790, Class A, Fire Resistance
  • UL 263, Fire Resistance
  • TAS 100, Wind Driven Rain
  • UL 580/1897 Uplift Testing
  • Texas Windstorm - Evaluation RC-398
  • 2017 FBC Approval: FL11560.2 and FL11560.3
  • ICC Evaluation Report - ESR-2385
