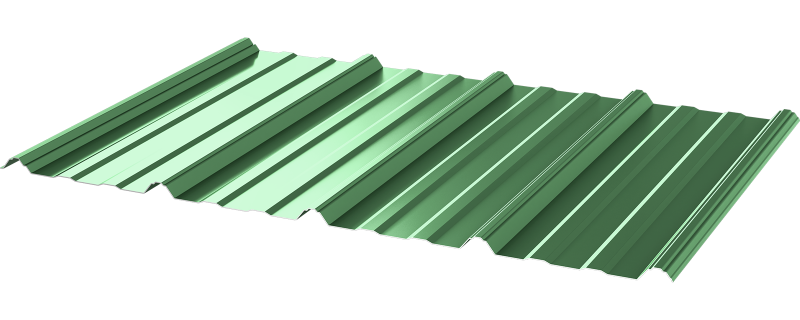

Master Rib - Roof & Wall Panel

MasterRib metal panels are our most popular and versatile for classic looks used in a wide range of roofing and sidewall applications for residential, commercial, and post-frame, buildings. MasterRib metal panels feature extra-wide ribs to increase strength and ease handling with roof installation. Another unique feature of the MasterRib metal roofing panel is the extra-large siphoning channel on the under-lap rib which provides extra leak resistance in extreme wind and rain loads.

Specifications

  • Applications: Roof & Wall
  • Fastener: Exposed Fastener
  • Coverage: 36" Coverage
  • Rib Height: 3/4"
  • 3:12 minimum recommended roof pitch
  • Suitable for solid deck or open framing



Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 29- and 26-gauge unpainted Galvalume® Plus
  • 29 gauge unpainted galvanized with acrylic coating
  • 29- and 26-gauge Signature® 200 siliconized polyester paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage

PBC - Roof & Wall Panel

  • Designed for commercial, industrial, residential, and steel-framed building applications, the PBC Panel provides architects and designers a corrugated profile option which can be installed as both a roof and a wall panel. Install over a sold substrate or open framing. Suitable for roof applications, as well as both vertical and horizontal wall applications.

Specifications

  • Applications: Roof & Wall
  • Fastener: Exposed Fastener
  • Coverage: 32" Coverage
  • Rib Height: 7/8"
  • 3:12 minimum recommended roof pitch
  • Suitable for solid deck or open framing

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 26 and 24 gauge unpainted Galvalume® Plus
  • 26 gauge Signature® 200 siliconized polyester paint system (select colors)
  • 26-gauge Signature® 300 polyvinylidene fluoride paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage

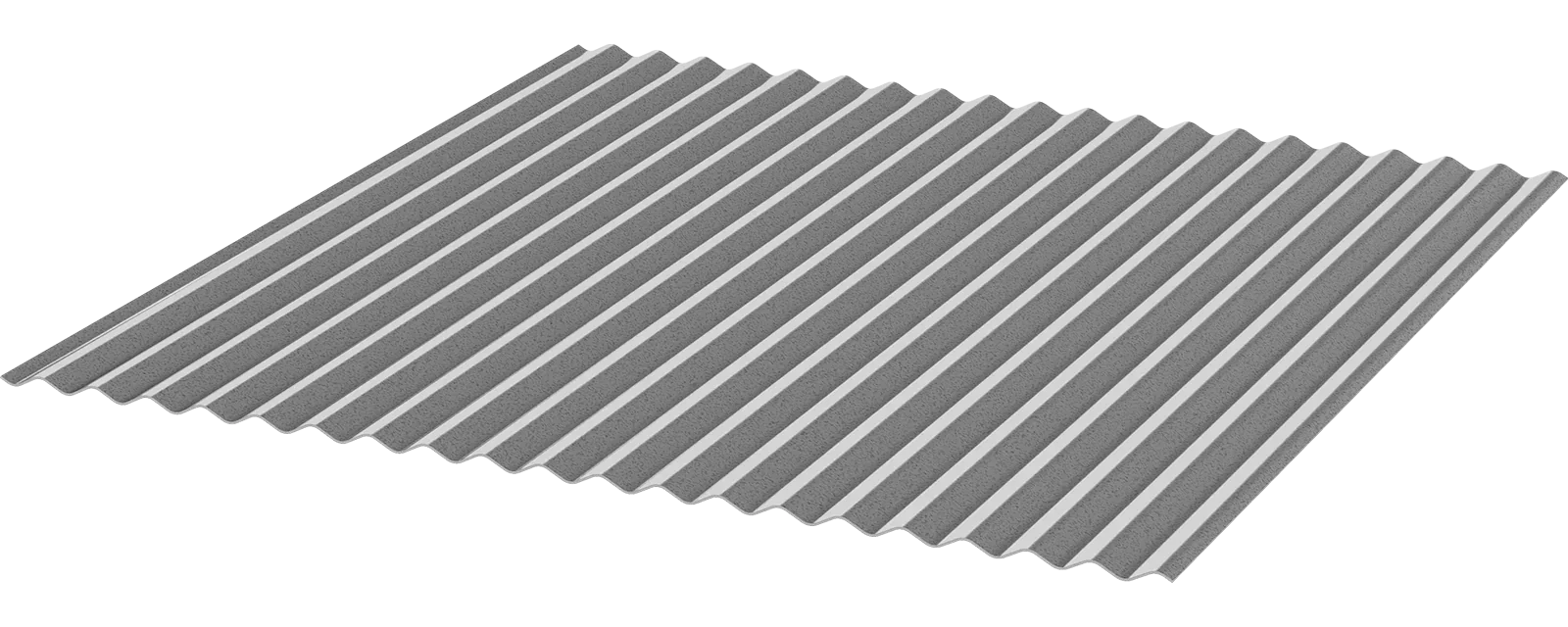

1-1/4″ Corrugated Panel - Roof & Wall Panel

Corrugated panels are the original metal roofing and siding panels and are a traditional staple in agricultural applications. Today, usage has expanded beyond its rural roofing heritage, and they are being increasingly used to add traditional, and rustic looks to homes, restaurants, retail establishments, and many other building types.

Specifications

  • Application: Roof & Wall
  • Fastener: Exposed Fastener
  • Coverage: 24" Coverage
  • Rib Height: 1/4"
  • 3:12 minimum recommended roof pitch
  • Suitable for solid deck or open framing.

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 29- and 26-gauge unpainted Galvalume®
  • Economy and 29 gauge unpainted galvanized with acrylic coating
  • 26-gauge Signature® 200 siliconized polyester paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage

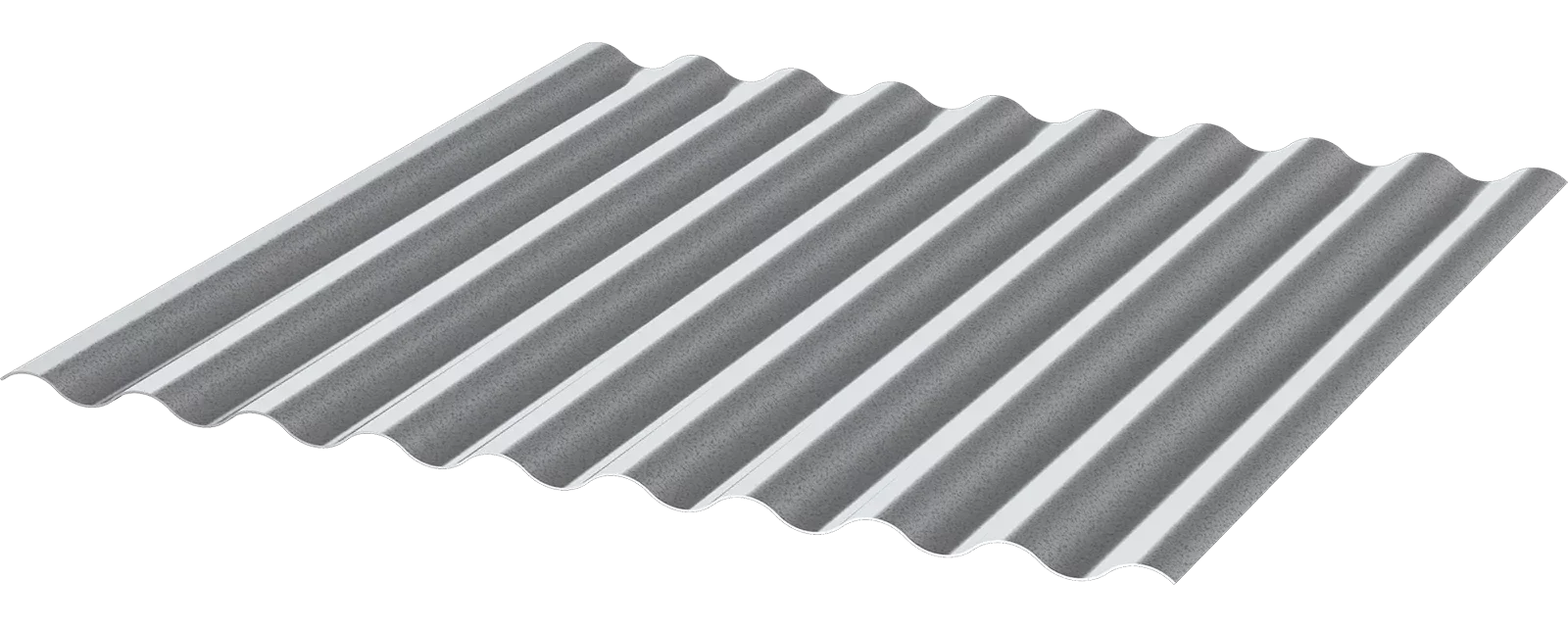

2-1/2″ Corrugated Panel Roof & Wall Panel

Corrugated panels are the original metal roofing and siding panels and are a traditional staple in agricultural applications. Today, usage has expanded beyond its rural roofing heritage, and they are being increasingly used to add traditional, and rustic looks to homes, restaurants, retail establishments, and many other building types.

Specifications

  • Applications: Roof & Wall
  • Fastener: Exposed Fastener
  • Coverage: 24" Coverage
  • Rib Height: 1/2"
  • 3:12 minimum recommended roof pitch
  • Suitable for solid deck or open framing.

Substrates and Coatings

    • High-strength steel substrate
    • Anti-corrosion Galvalume® coating for painted and unpainted steel
    • 29 and 26 gauge unpainted Galvalume® Plus
    • Economy and 29 gauge unpainted galvanized with acrylic coating
    • 26-gauge Signature® 200 siliconized polyester paint system (select colors)
    • Painted panels feature 45-year limited finish warranty coverage

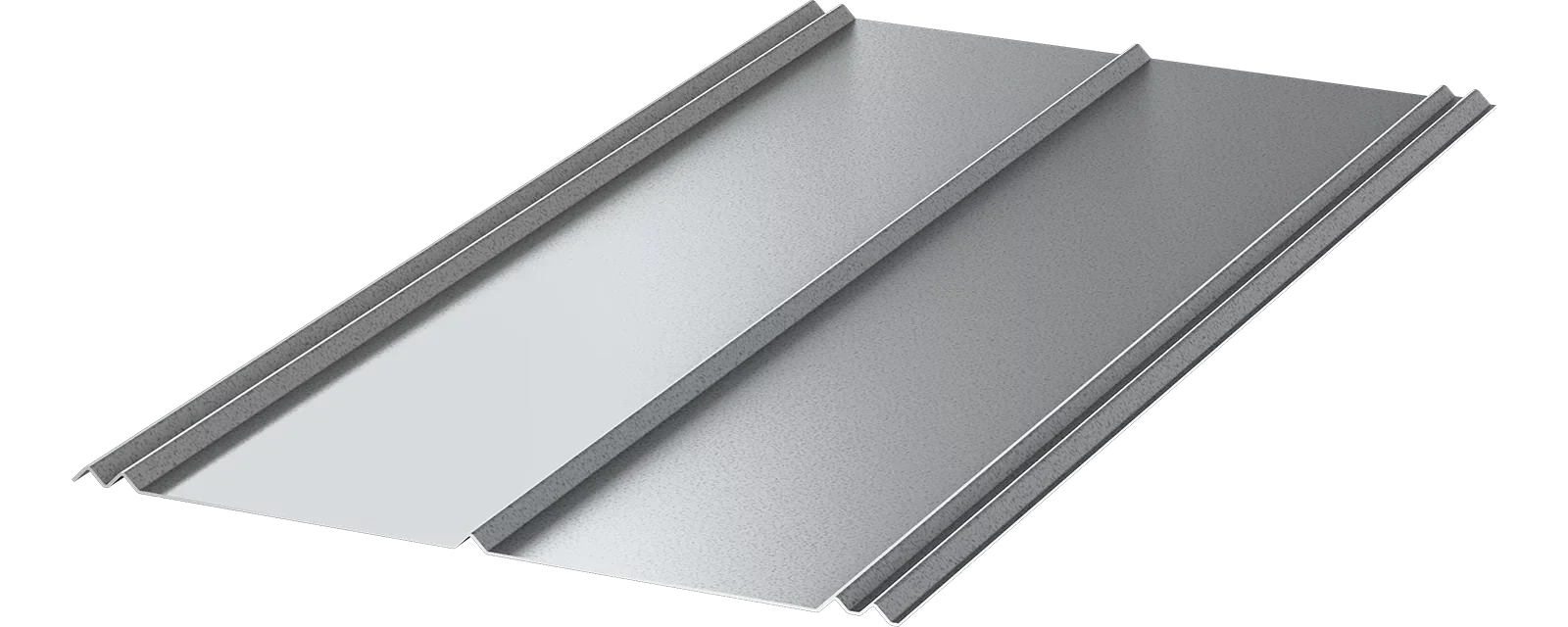

5V - Panel

For generations, 5V metal roofing panels have been used on farm buildings and other rural metal roofing projects. Today, many homeowners have recognized that the timeless design is ideal for residential roofs as well. Our 5V metal roofing panels are especially popular in Florida and other coastal areas. Our 5V roof panels are designed with an enhanced “U” over “V” profile to provide maximum leak resistance.

Specifications

  • Applications: Roof
  • Fastener: Exposed Fastener
  • Coverage: 24" Coverage
  • Rib Height: 1/2"
  • 3:12 minimum recommended roof pitch
  • Suitable for solid decking or open frame.

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 29- and 26-gauge unpainted Galvalume® Plus
  • Economy and 29 gauge unpainted galvanized with acrylic coating
  • 26-gauge Signature® 200 siliconized polyester paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage

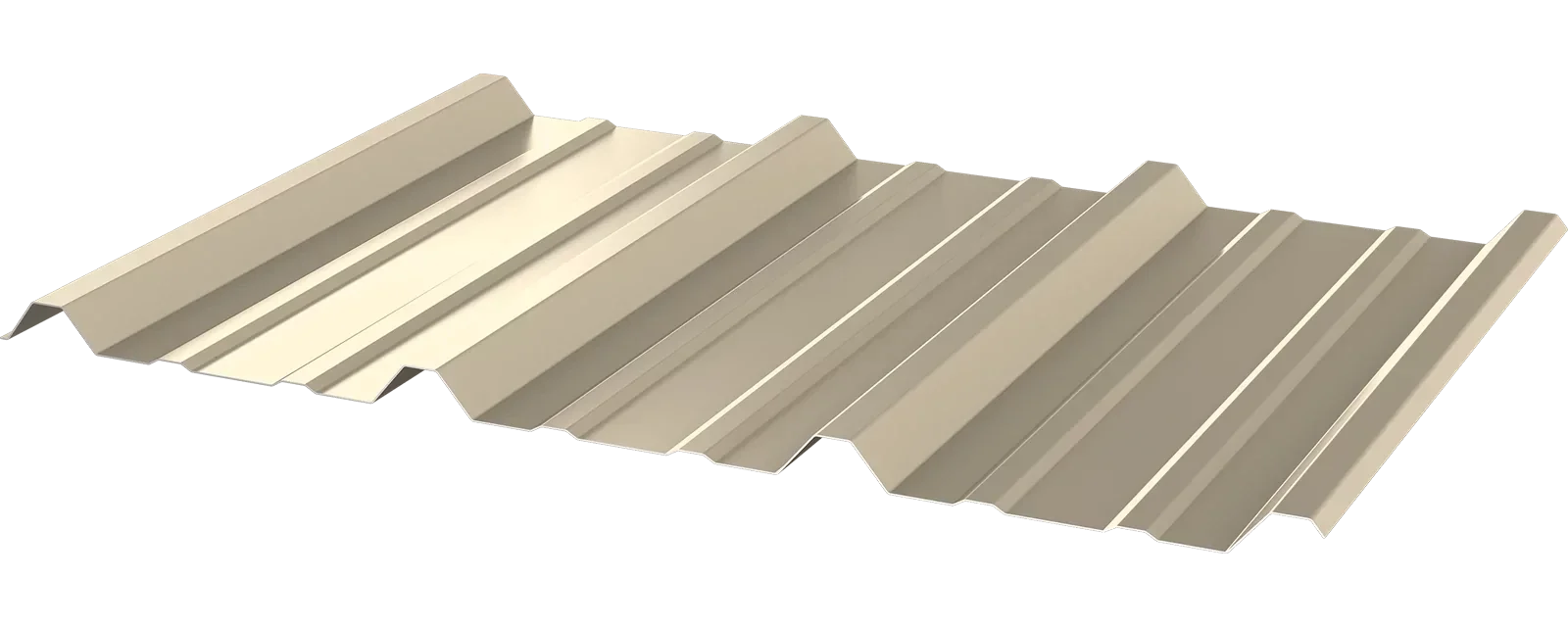

PBR - Roof & Wall Panel

Union Corrugating's PBR metal panels are designed for industrial, commercial, and steel-frame building applications. The "R" family of metal panels has the strength to perform on roof pitches as low as 1:12 and on spans up to five feet. The IR metal roofing panels are also suitable for sidewall applications while the PBR metal roofing panel has an added purlin bearing leg to provide better support for roofing applications.

Specifications

  • Applications: Roof & Wall
  • Fastener: Exposed Fastener
  • Coverage: 36" Coverage
  • Rib Height: 1-1/4"
  • 1:12 minimum recommended roof pitch.
  • Suitable for solid deck or open framing.

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 26- and 24-gauge unpainted Galvalume® Plus
  • 26-gauge Signature® 200 siliconized polyester paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage
