S&S Metal Supply offers OEG's Big Apple Joist® systems for residential, commercial and multi-story construction projects.

What are Big Apple residential joists?

Big Apple Joist® is an engineered cold-formed steel floor framing solution designed to combine structural performance with easier coordination of mechanical, electrical and plumbing systems.

Unlike conventional C-shaped steel joists that may require field modifications to accommodate utilities, Big Apple Joists feature large, factory-formed openings that provide dedicated pathways for MEP systems while maintaining the integrity of the framing system.

Available in multiple depths, gauges and flange configurations, Big Apple Joists provide contractors, developers, architects and engineers with a versatile solution for long-span floor framing applications.

Built for Structure. Designed for MEP

The large openings incorporated into Big Apple Joists help simplify coordination between structural framing and building services.

This can make the system especially useful for projects requiring extensive routing of:

HVAC ductwork • Electrical systems • Plumbing lines • Fire protection systems • Building services

Key Features & Benefits:

Large MEP Openings — Factory-formed openings simplify routing of HVAC, electrical and plumbing systems.
Long-Span Capability — Multiple joist configurations accommodate a broad range of floor loads and span requirements.
Galvanized Steel Construction — Hot-dipped galvanized steel for durability and corrosion protection.
Multiple Joist Depths — 8", 10", 12", 14" and 16" configurations are represented in the catalog.
Multiple Gauges — 18, 16, 14, 12 and 10 gauge, depending on configuration.
Multiple Flange Widths — Provides additional design flexibility.
Aligned Openings — Helps create continuous pathways through the framing system.
Reinforced Profile — Includes star-shaped embossing for rigidity and reinforced lip construction.
Residential & Commercial Applications — Suitable for residential, commercial and high-rise floor framing systems.

Thicknesses from 43 mil (18 ga.) through 118 mil (10 ga.), with 18-gauge material listed at a minimum yield strength of 33 ksi and 16, 14, 12 and 10 gauge material at 50 ksi minimum yield strength. Products are listed with a G-60 hot-dipped galvanized coating.

_________________________________________________________________________________________________________________________________________________________________________

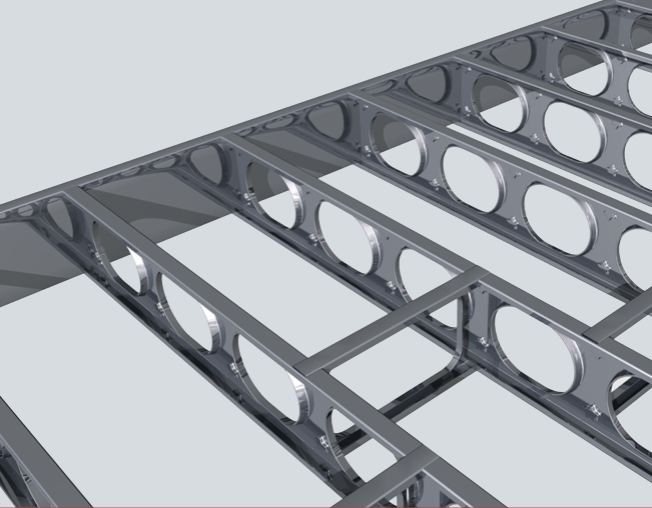

Engineered Openings for MEP Coordination

Available Joist Depths

Big Apple Joists are represented in the manufacturer’s technical data in the following nominal depths:

8" • 10" • 12" • 14" • 16"

Joist Depth Opening Size Opening Spacing

8" 5" x 7.5" 14" O.C.

10" 7" x 9.25" 14" O.C.

12" 9" x 11.75" 17.5" O.C.

14" 9" x 11.75" 17.5" O.C.

16" 9" x 11.75" 17.5" O.C.

Material & Standards

Big Apple Joist® products are manufactured from hot-dipped galvanized steel and are designed/manufactured to applicable ASTM and AISI standards, including:

ASTM C955
ASTM C1007
ASTM A924/A924M
ASTM A653/A653M
ASTM C1003/C1003M
AISI cold-formed steel design provisions

View Applications:

Big Apple Joists can be considered for:

Residential Construction
Single-family and custom residential floor framing.

Multi-Family Construction
Apartments, townhouses, condominiums and similar developments.

Commercial Construction
Commercial buildings requiring cold-formed steel floor framing.

Multi-Story Projects
Floor framing systems where weight, routing flexibility and repeatable framing layouts are important.

MEP-Intensive Projects
Projects where mechanical, electrical and plumbing coordination is a major design consideration.

The manufacturer specifically describes the joist system for commercial, high-rise and residential floor framing assembles.

_________________________________________________________________________________________________________________________________________________________________________

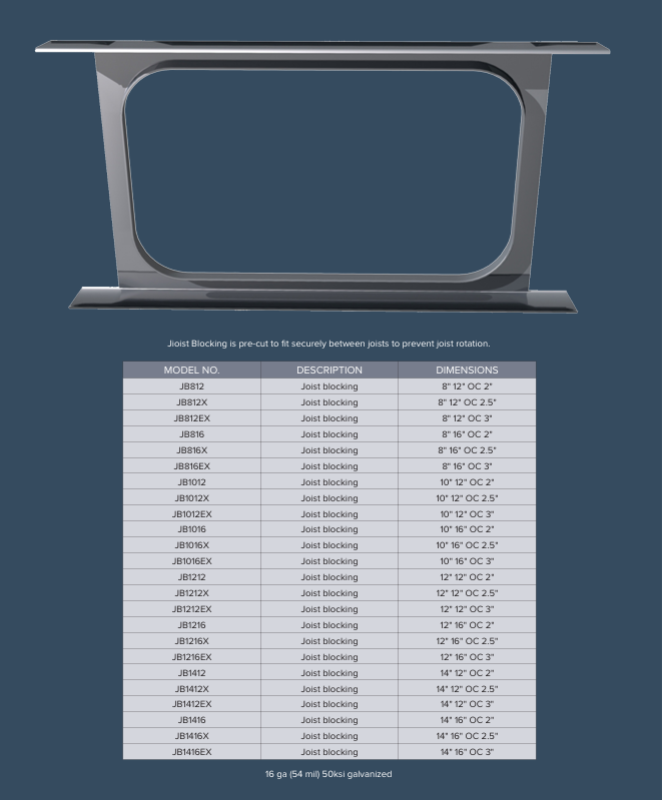

Integrated framing headers and accessories

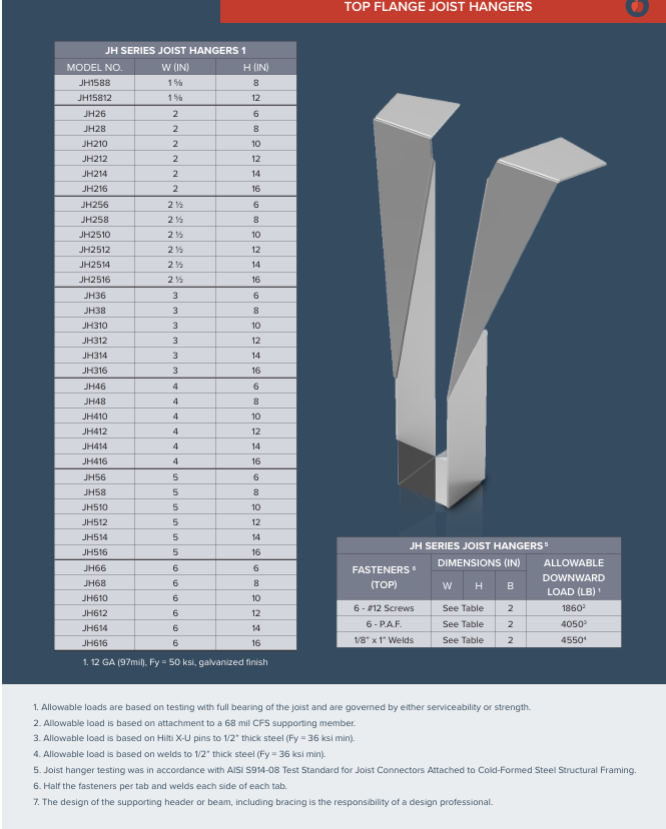

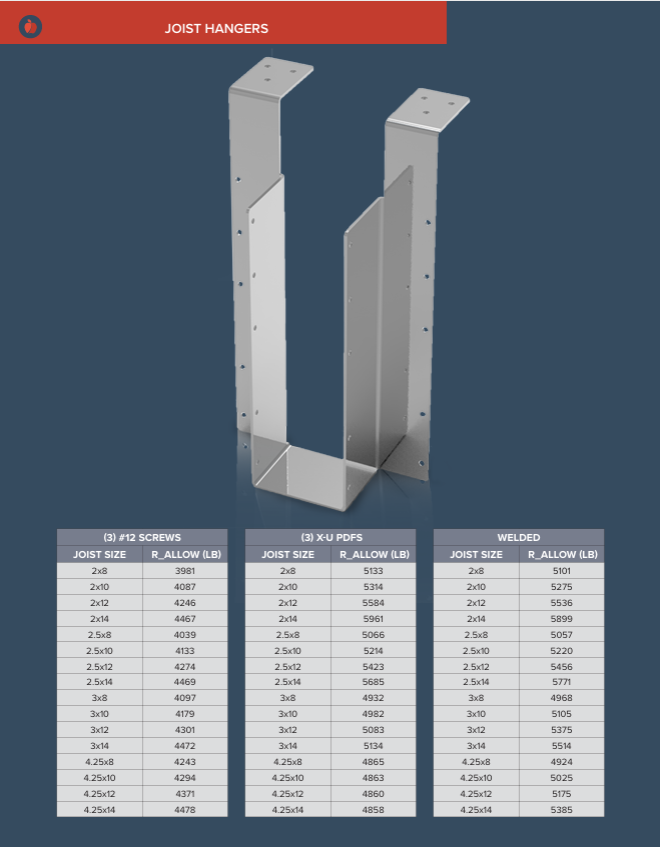

Paired with custom bearing clips, rim joists, and hanger attachments, Big Apple Joists create an efficient, seamless framing envelope that works with both light-gauge steel and masonry structures.

Floor joists
